GE IS215UCCCM04A VME Controller Card for Mark VIe Turbine

The GE IS215UCCCM04A is a VME Controller Card and core module in the Speedtronic Mark VIe gas turbine control system, integrating the IS215UCCC H4 base board, 128 MB flash memory, 256 MB DRAM, and the IS200EPMC daughter board. Often referenced as a CPCI 3U compact PCI device, it serves as a processing hub for real-time control and data management in gas turbine operations.

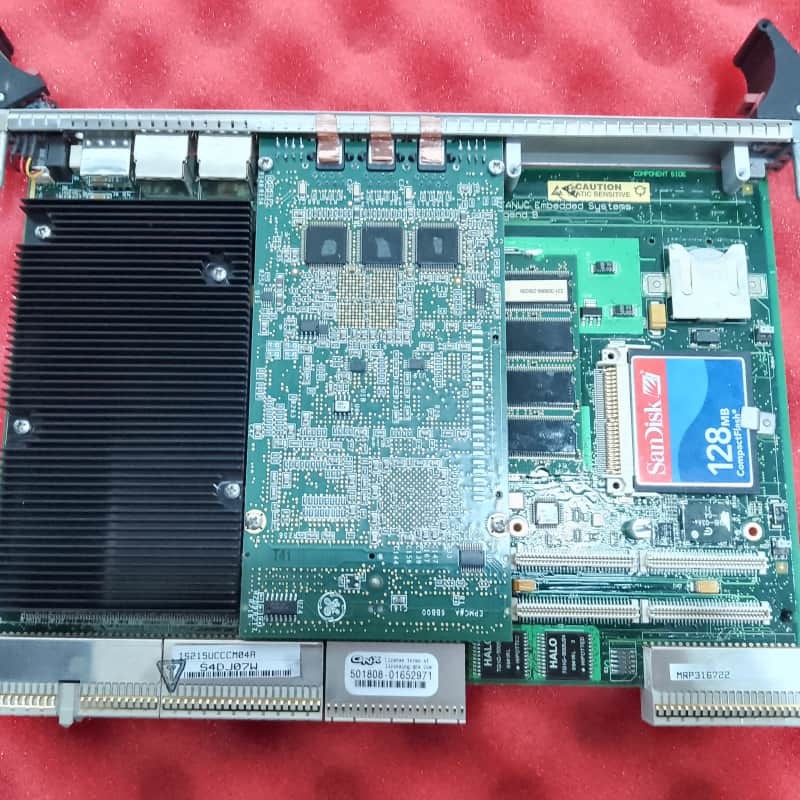

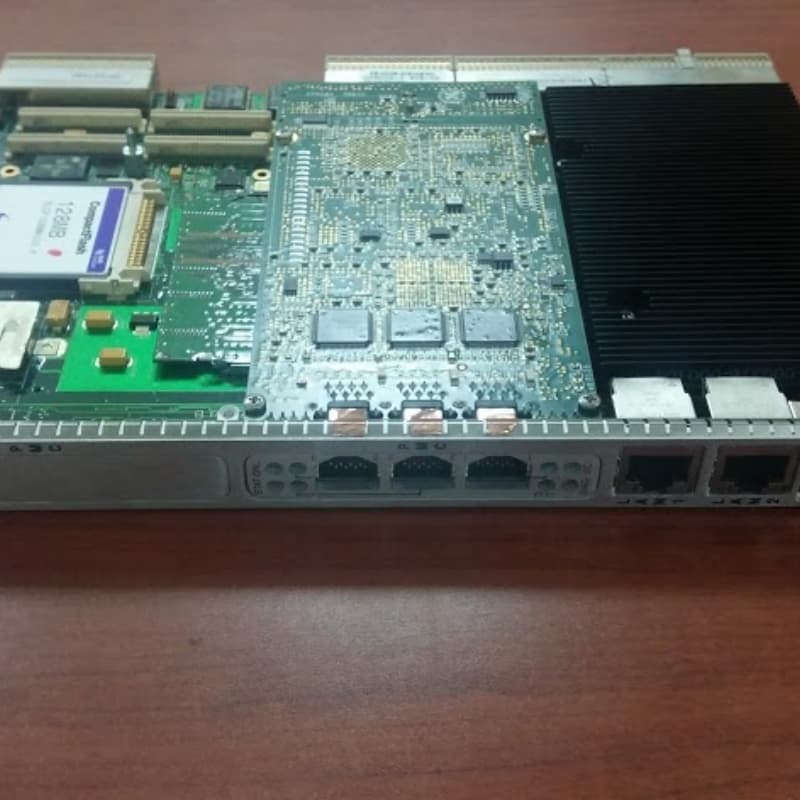

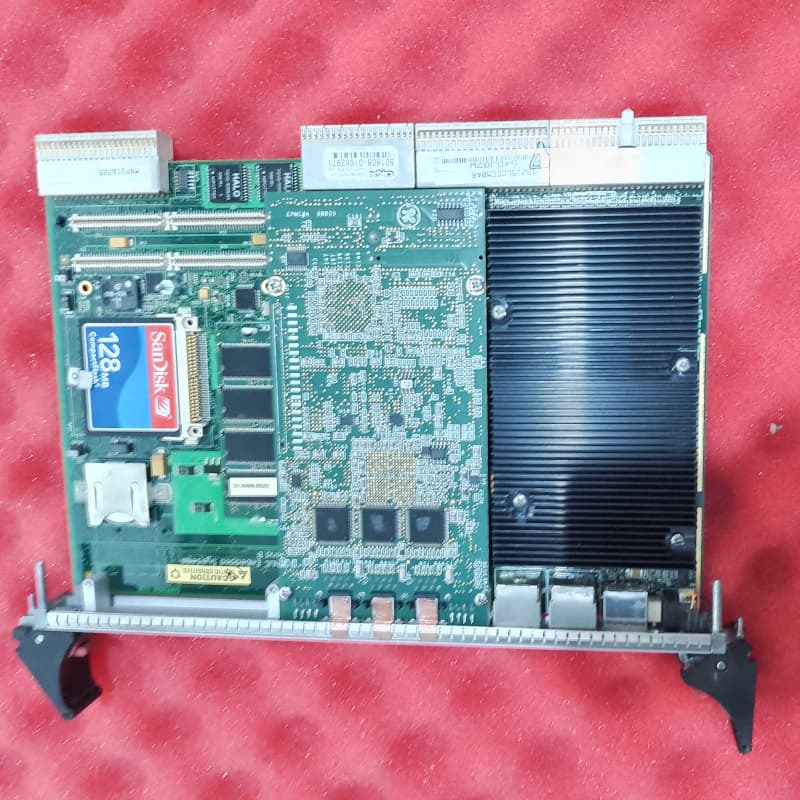

Its front faceplate features six labeled Ethernet ports for targeted connectivity, status LEDs for operational feedback, and a reset button for quick system recovery. Secured by rear male terminals and dual faceplate clasps, the card incorporates energy-storing capacitors, energy-regulating resistors, and a 128 MB SD card for data storage. Key components include microchips, a large slotted heatsink for thermal management, and interference suppressors to mitigate external electrical noise.

• Mark VIe Integration: Central to the gas turbine control system, combining base board, memory, and daughter board for seamless operation.
• Processing & Storage: 128 MB flash (non-volatile storage) and 256 MB DRAM (volatile processing) support complex control algorithms.
• Connectivity: Six labeled Ethernet ports enable structured communication with system modules, sensors, and upper systems.
• Durability & Stability: Heatsink prevents overheating; interference suppressors shield against radio/cell phone interference for reliable performance.
• Power Efficiency: Operates on +5V DC (4.5A typical/6.75A max), +3.3V DC (1.5A typical/2.0A max), and +12V DC (50mA max), with tight voltage tolerances.
• User-Friendly Design: Front LEDs and a reset button simplify diagnostics and troubleshooting; secure mounting ensures stability in industrial environments.
