GE IS200TPROH1C Emergency Protection Terminal Board for Turbine Control
| Place of Origin | USA |
|---|---|
| Marca | GE |
| Certificação | COO |
| Model Number | IS200TPROH1C |
| Minimum Order Quantity | 1 |
| Preço | $6000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Name | GE IS200TPROH1C Emergency Protection Terminal Board | Product ID | IS200TPROH1C |
|---|---|---|---|
| Product Net Weight | 2kg | Series | Mark VI |
| Product Net Width | 100mm | Product Net Height | 200mm |
| Product Net Depth/Length | 330mm | Warranty | 1 Year |
| Destacar | GE turbine control terminal board,emergency protection terminal board,IS200TPROH1C turbine control board |
||
Descrição de produto
GE IS200TPROH1C Emergency Protection Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TPROH1C Emergency Protection Terminal Board |
| Product ID | IS200TPROH1C |
| Product Net Weight | 2kg |
| Series | Mark VI |
| Product Net Width | 100mm |
| Product Net Height | 200mm |
| Product Net Depth/Length | 330mm |
| Warranty | 1 Year |
Product Overview

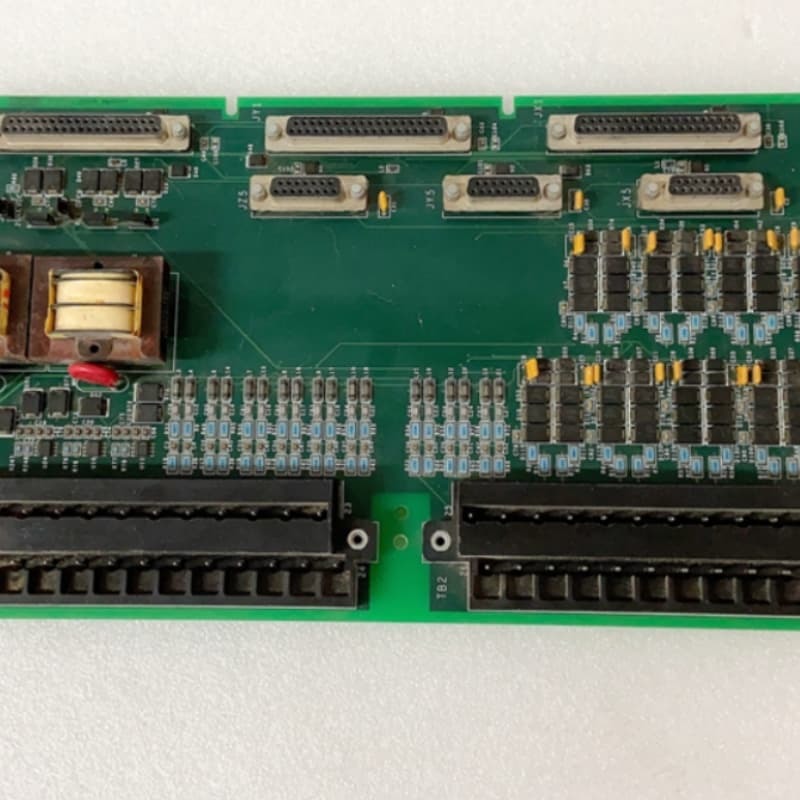

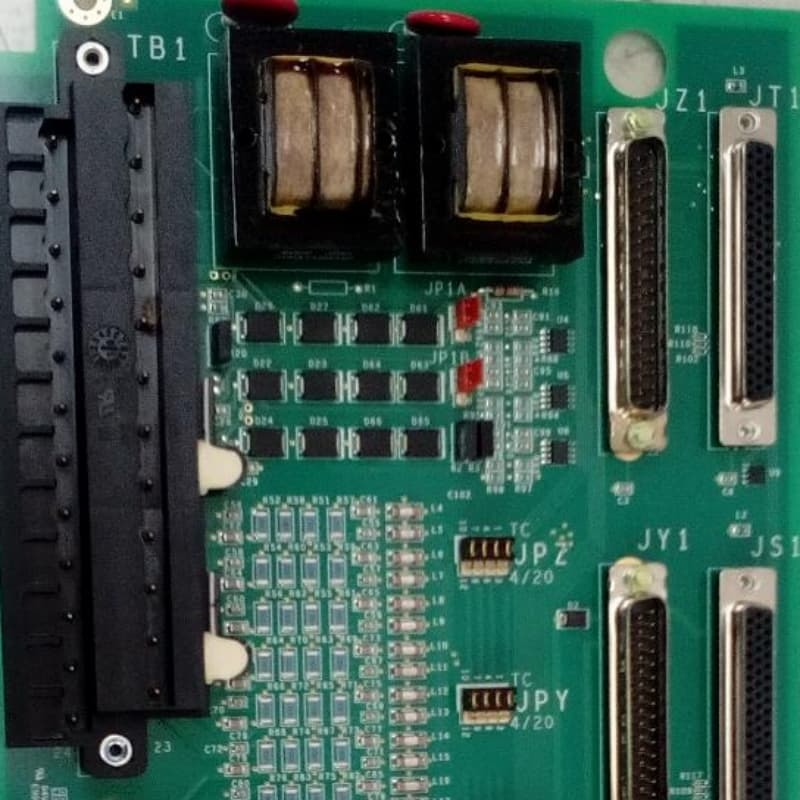

The GE IS200TPROH1C is an Emergency Protection (TPRO) terminal board, a critical component in turbine safety systems, designed to interface with PPRO I/O packs for emergency protection in simplex and TMR (Triple Modular Redundancy) applications. Housing three PPRO I/O packs, it conditions speed signals, processes bus/generator voltage inputs via two potential transformers (PTs), and facilitates connections to backup trip relay boards through three DC-37 pin connectors.
Equipped with two pluggable 24-barrier terminal blocks, it supports speed signal and PT input wiring and features removable Euro-Block terminals for easy maintenance. Mounted on a DIN-rail or panel via a sheet metal carrier with a plastic insulator, it ensures secure installation in industrial environments. Key operational elements include nine speed inputs, P24 output with a MARET return, and 4-20 mA inputs for future extensions.
Key Features
- Protection Integration: Interfaces with three PPRO I/O packs or simplex setups, conditioning speed signals and voltage inputs for emergency turbine protection.
- Connectivity: Three DC-37 connectors link to backup trip relay boards; barrier terminals support speed/PT wiring, with removable blocks for easy maintenance.
- Voltage Safety: Critical warning against cross-connecting 240V AC and DC, as peak voltages exceed MOV ratings; 120V AC applications are safe for MOVs.
- Performance Metrics: Supports magnetic speed pickups with pulse rates from 2 Hz to 20,000 Hz and 0.05% accuracy, ensuring precise speed monitoring.

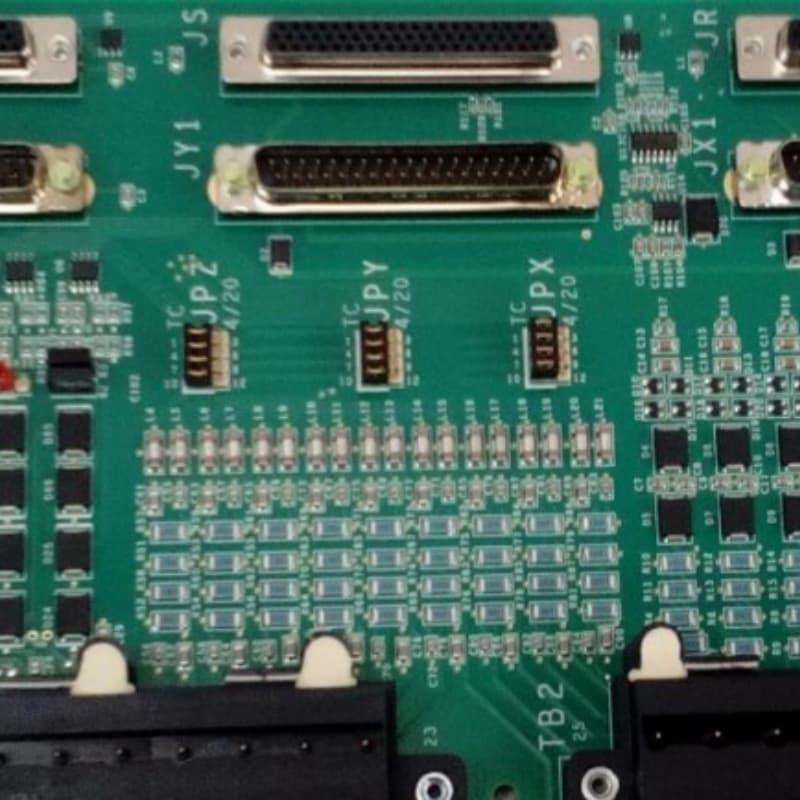

- Diagnostics & Configuration: Scans electronic ID parts on startup to verify hardware configuration; jumpers adjust for thermocouple or 4-20 mA inputs.
- Environmental Durability: Surface-mount technology and operating temperature range of -30°C to 65°C ensure reliability in harsh industrial settings.
- Power Resilience: P24 output, derived from ORing 28V supplies of R/S/T I/O packs, remains accessible even if individual packs are offline.
