GE IS220PDIOH1A Discrete I/O Terminal Board for Mark VIe Systems
| Place of Origin | USA |
|---|---|
| Marca | GE |
| Certificação | COO |
| Model Number | IS220PDIOH1A |
| Minimum Order Quantity | 1 |
| Preço | $7000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Name | GE IS220PDIOH1A Discrete Contact Input/Output Terminal Board | Product ID | IS220PDIOH1A |
|---|---|---|---|
| Series | Mark VIe | Product Net Weight | 2kg |
| Warranty | 1 Year | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Depth/Length | 330mm |
| Destacar | GE Mark VIe discrete I/O terminal board,turbine control I/O terminal board,GE IS220PDIOH1A terminal board |
||
Descrição de produto
GE IS220PDIOH1A Discrete Contact Input/Output Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PDIOH1A Discrete Contact Input/Output Terminal Board |
| Product ID | IS220PDIOH1A |
| Series | Mark VIe |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
| Product Net Height | 200mm |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
Product Overview
The GE IS220PDIOH1A is a Discrete Input/Output Terminal Board part of the Mark VIe Series, designed for distributed control systems. It integrates 24 discrete input channels and 12 Form C relay output channels, acting as an interface between 1-2 Ethernet networks and terminal boards. Housed in a compact DIN rail-mounted design, it operates in -40°C to +70°C, featuring a shared processor board and dedicated I/O acquisition board for reliable signal handling in industrial environments.
Key Features
- I/O Capabilities: 24 inputs and 12 relay outputs with <5ms response time; input logic supports active high/low configurations.

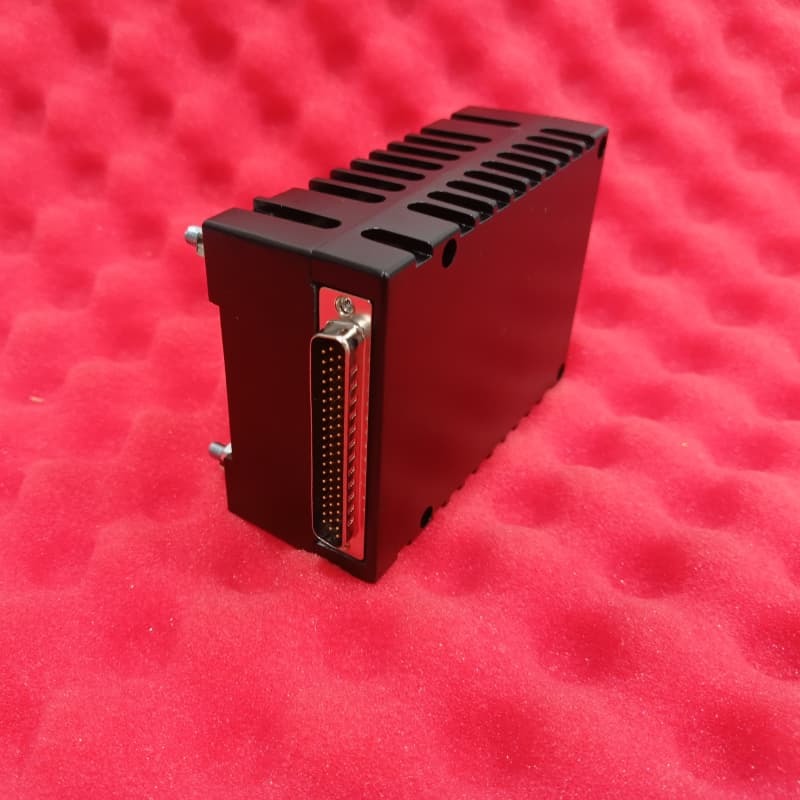

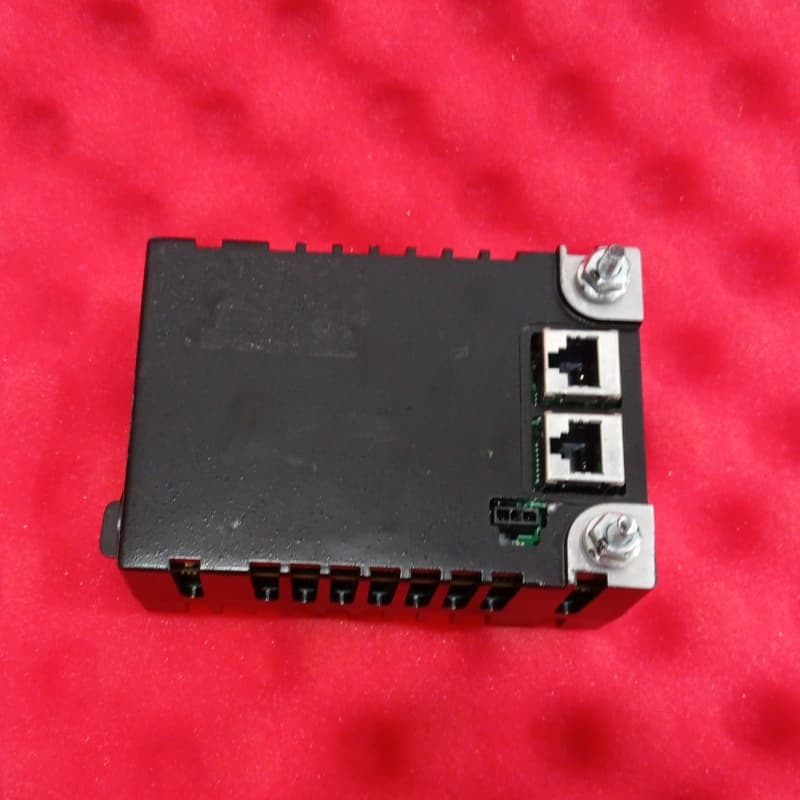

- Connectivity: Dual 10/100 Ethernet ports for redundant communication, a 3-pin power input, and a DC-62 connector for terminal board signals; soft-start power prevents inrush current.

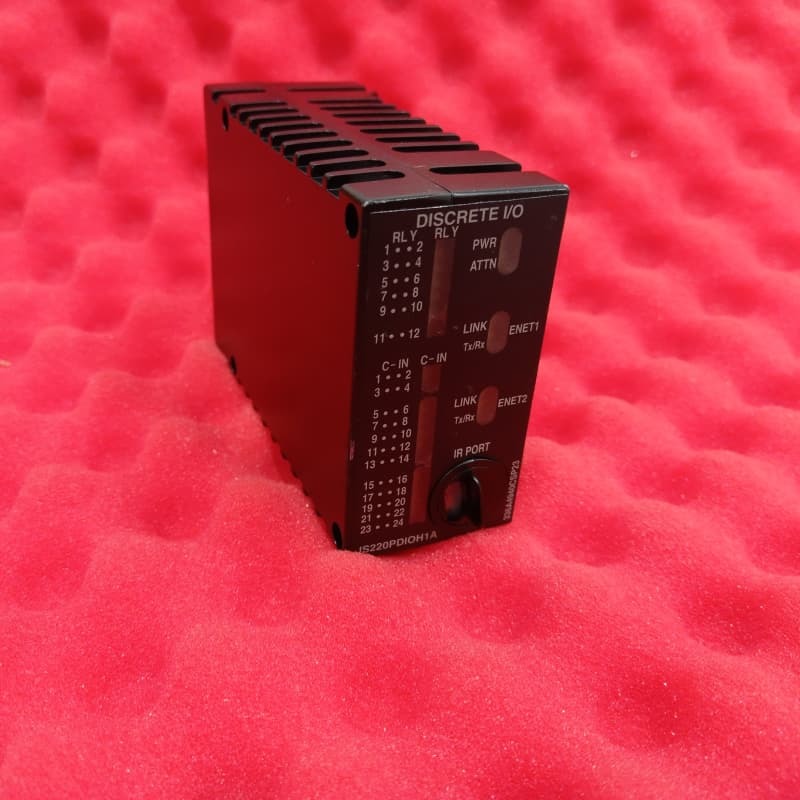

- Diagnostics: Front-facing LEDs and an infrared port for local diagnostics; power-up self-tests verify hardware, Ethernet, and board ID matching.
- Installation & Compatibility: Mounts on TDBS or TDBT terminal boards; secured via threaded studs to avoid connector stress. AC voltage rejection and optical/galvanic isolation enhance reliability.
- Flexibility: Combines PDIA/PDOA functions in one unit, supporting simplex or TMR setups, with seamless integration into Mark VIe control architectures.
