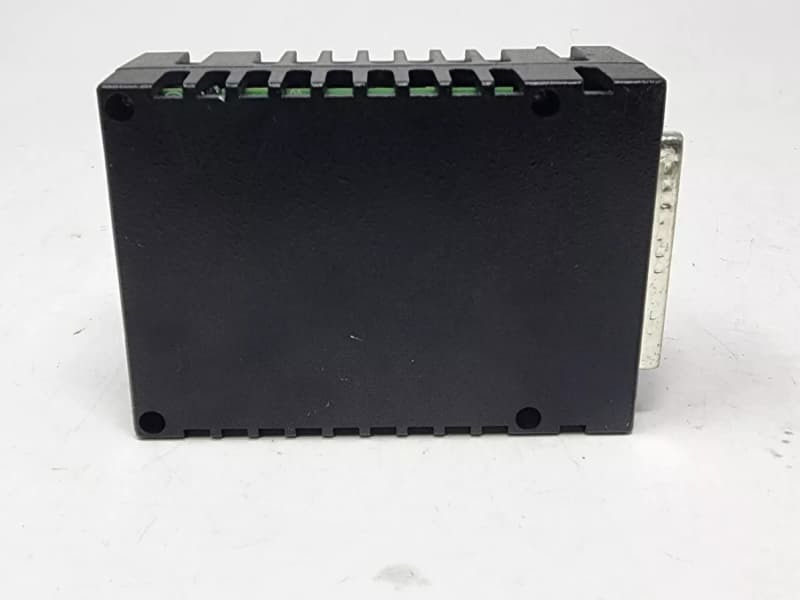

GE IS220PAOCH1A Analog Output Module for Mark VIe Turbine Control
| Place of Origin | USA |
|---|---|
| Marca | GE |
| Certificação | COO |
| Model Number | IS220PAOCH1A |
| Minimum Order Quantity | 1 |
| Preço | $7000 |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999 |
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Name | GE IS220PAOCH1A ANALOG OUTPUT MODULE | Product ID | IS220PAOCH1A |
|---|---|---|---|
| Series | Mark VI | Product Net Weight | 2kg |
| Warranty | 1 Year | Product Net Width | 100mm |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Destacar | GE Mark VIe analog output module,turbine control output module,GE IS220PAOCH1A module with warranty |
||
Descrição de produto
GE IS220PAOCH1A ANALOG OUTPUT MODULE
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS220PAOCH1A ANALOG OUTPUT MODULE |
| Product ID | IS220PAOCH1A |
| Series | Mark VI |
| Product Net Weight | 2kg |
| Warranty | 1 Year |
| Product Net Width | 100mm |
| Product Net Depth/Length | 330mm |
| Product Net Height | 200mm |
Product Overview
The GE IS220PAOCH1A is an Analog Output Module part of the Mark VIe series, designed for gas turbine control systems. It serves as an electrical interface between 1-2 Ethernet I/O networks and analog output terminal boards, integrating a BPPx processor board and a dedicated analog output acquisition board.
Key Features

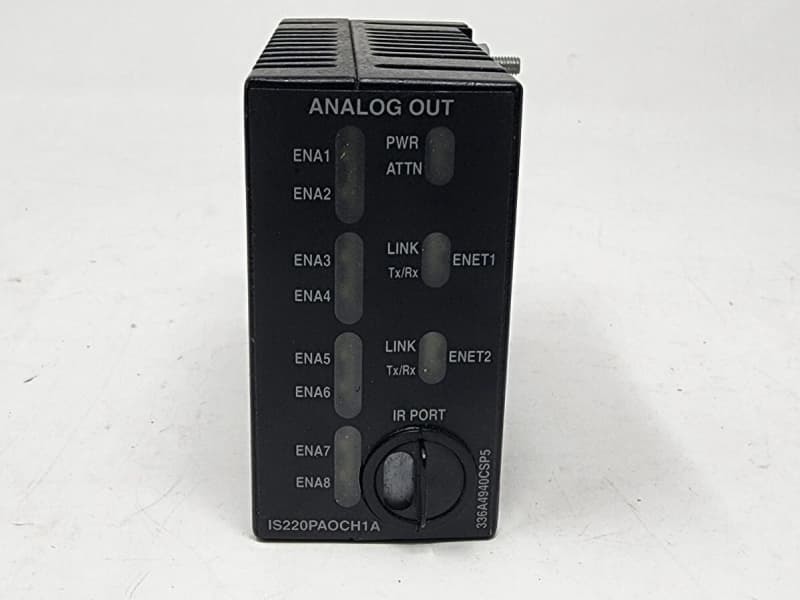

- Analog Output Capabilities: 8 high-compliance 0-20 mA outputs with 16-bit DACs; each output includes a mechanical relay for enable/disable control, with LEDs indicating relay status.
- Feedback & Diagnostics: Current feedback via 16-bit ADCs and 50Ω terminal board resistors; self-tests check processor hardware, Ethernet, power supplies, and hardware-code matching. Internal temperature sensors trigger alerts for overheating.

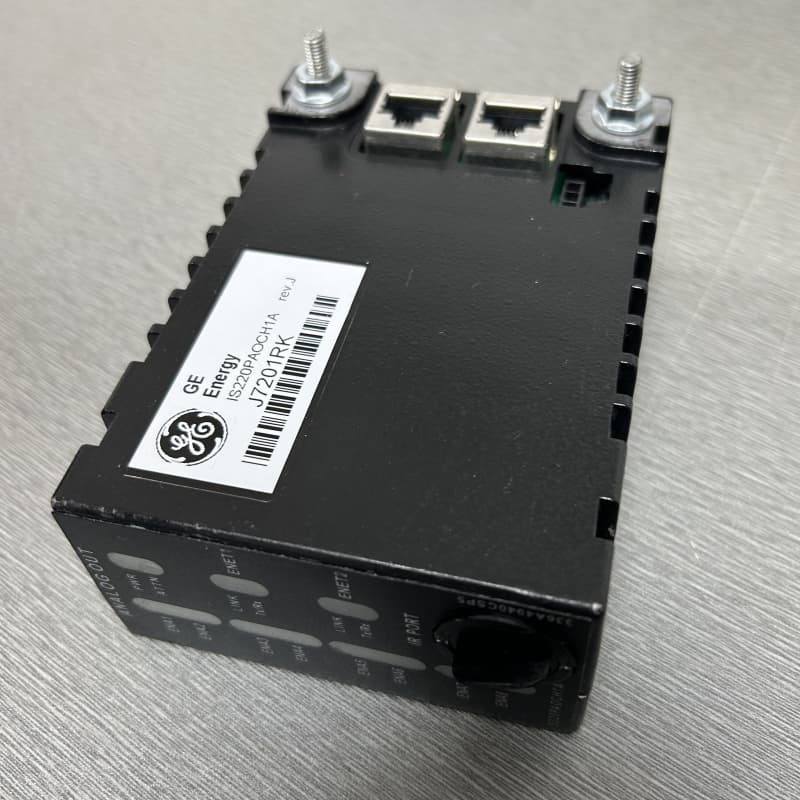

- Connectivity & Installation: Dual RJ45 Ethernet ports for redundant communication, a 3-pin power input, and a DC-37 pin connector for terminal board links. Soft-start power allows hot-plugging; mounts via terminal board brackets to avoid connector stress.
- Compatibility: Works with TBAOH1C and STAOH1A/H2A terminal boards; supported by ControlST V04.06+ and configurable via ToolboxST. Operates in -40 to 70°C with derating based on output configurations.
- Alarm Management: Addresses out-of-range outputs/feedback or hardware faults by verifying commands, checking wiring, or replacing faulty boards/packs to ensure reliable turbine control.
