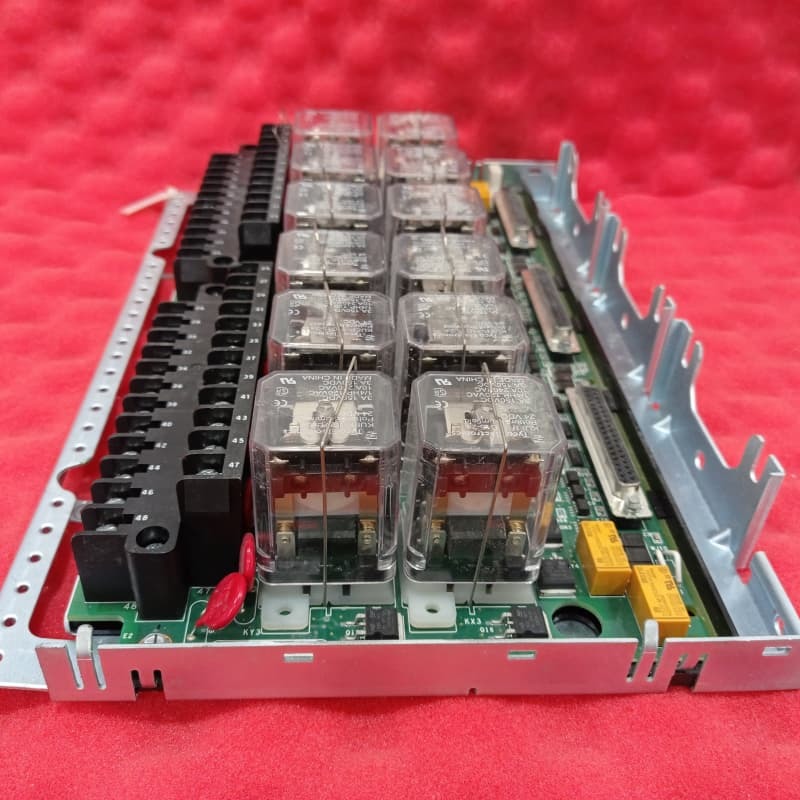

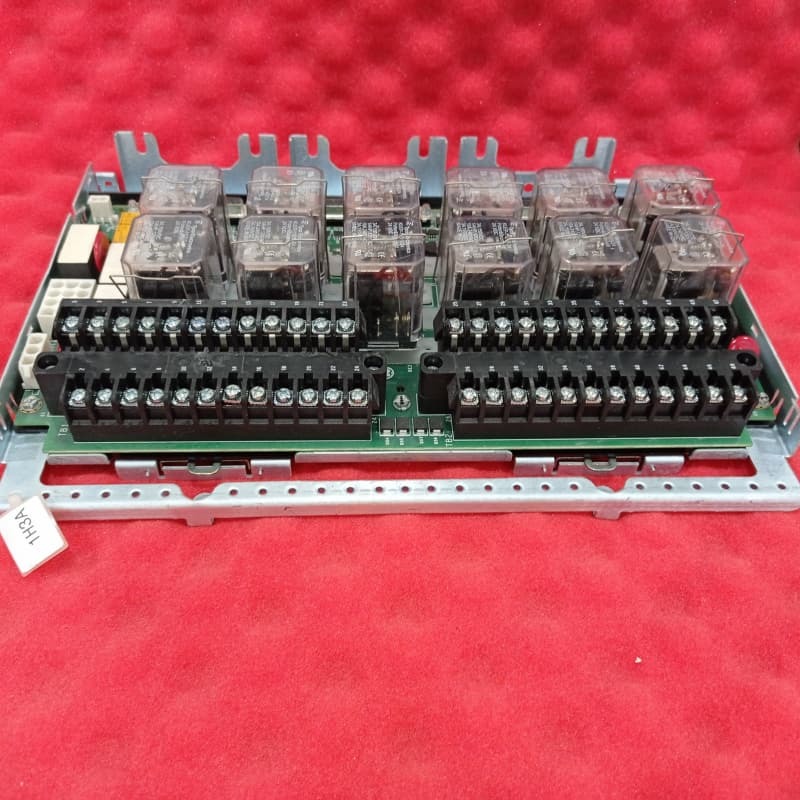

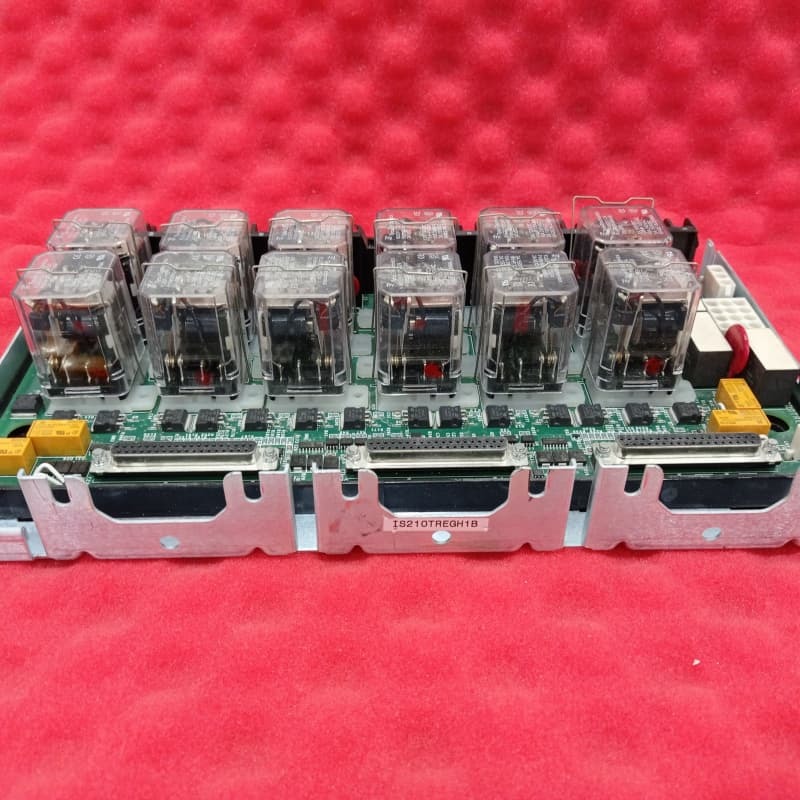

GE IS200JPDSG1AEC Mark VI Turbine Power Distribution Board
| Lugar de origem | NÓS |
|---|---|
| Marca | GE |
| Número do modelo | IS200JPDSG1AEC |
| Quantidade de ordem mínima | 1pc |
| Preço | $6000 |
| Detalhes da embalagem | Fábrica nova e original, embalagem de caixas individuais |
| Tempo de entrega | 5-7 dias |
| Termos de pagamento | T/T. |
| Habilidade da fonte | 999pcs |
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Nome | GE IS200JPDSG1AEC Placa de distribuição de energia | ID do produto | IS200JPDSG1AEC |
|---|---|---|---|
| Série | Marcos VI | Função | Conselho de terminal de viagem de emergência da turbina |
| Profundidade líquida do produto/comprimento | 330mm | Altura líquida do produto | 200 mm |
| Largura líquida do produto | 100mm | Peso líquido do produto | 2kg |
| Garantia | 1 ano | ||
| Destacar | GE Mark VI turbine power board,turbine control distribution board,GE power distribution board with warranty |
||
Descrição de produto
GE IS200JPDSG1AEC Power Distribution Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200JPDSG1AEC Power Distribution Board |
| Product ID | IS200JPDSG1AEC |
| Series | Mark VI |
| Function | Turbine Emergency Trip Terminal Board |
| Dimensions (L×H×W) | 330mm × 200mm × 100mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200JPDSG1AEC is a Jumper Power Distribution Board (PCB) designed for the Mark VI Turbine Control System Series, extending compatibility to gas, steam, and wind turbines—an upgrade from the Mark V Series.
Key Features
- Power Distribution: Handles 28V DC input with multiple output configurations (6×6-pin, 3×2-pin, and 3×2-pin) and a 5-screw terminal (35A) for daisy-chaining
- Diagnostic Integration: Connects to PPDA I/O packs via 62-pin D-Shell and 50-pin ribbon cables for comprehensive system monitoring
- Enhanced Reliability: Includes overcurrent protection and isolated test rings for safe voltage measurements
- Compact Design: Sheet metal-mounted with detailed wiring diagrams for secure installation
- Compatibility: Works with JPDB/JPDF/JPDE boards and PPDA packs in Mark VIe's PDM system
Technical Details
As a critical 28V DC power management component, the IS200JPDSG1AEC receives power from external AC/DC or DC/DC converters, distributing it to control system components. Its design includes enhanced features over the JPDM module, such as additional fuses, output connectors, and support for PPDA I/O packs via ribbon cables, facilitating diagnostic integration.
Manufactured with A/E/C-rated revisions, it mounts on a sheet metal structure and integrates seamlessly into Power Distribution Module (PDM) systems while complying with safety standards through proper grounding via sheet metal brackets to Functional Earth (FE).
Compatible Components
| DS200DTBBG1ABB | DS200TCCAF1BDF |
| DS200SDCIG2AFB | IS200ISBBG1AAB |
| DS200SDCIG2AHB | IS200CABPG1BAA |
| DS200BDAAG1AAA | IS200DSFCG1AEB |
| DS200SIOBH1ABA | IS200DRLYH1BBB |
