GE DS200FSAAG2ABA Field Supply Amplifier Board 330mm x 200mm

GE DS200FSAAG2ABA Field Supply Amplifier Board

Product Details:

The GE DS200FSAAG2ABA is a Field Supply Gate Amplifier Board designed for GE’s Mark V Turbine Control System—used to manage wind, steam, and gas turbine automated drives, and part of GE’s final product series leveraging Speedtronic technology.

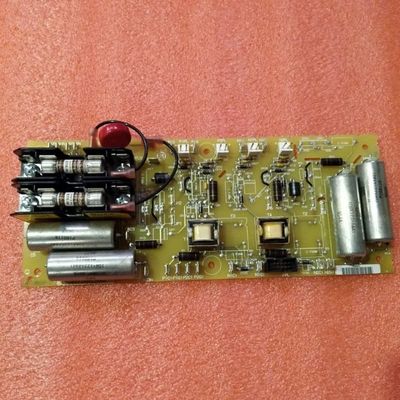

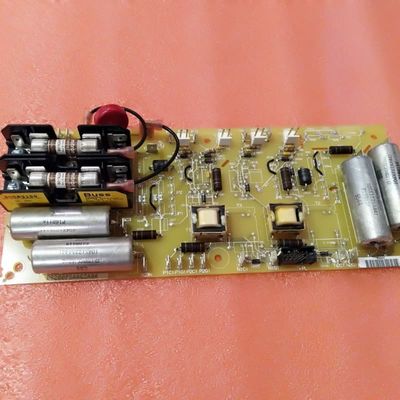

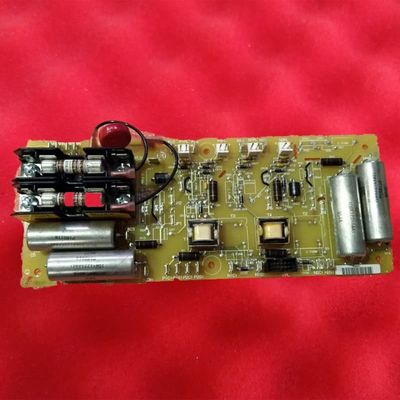

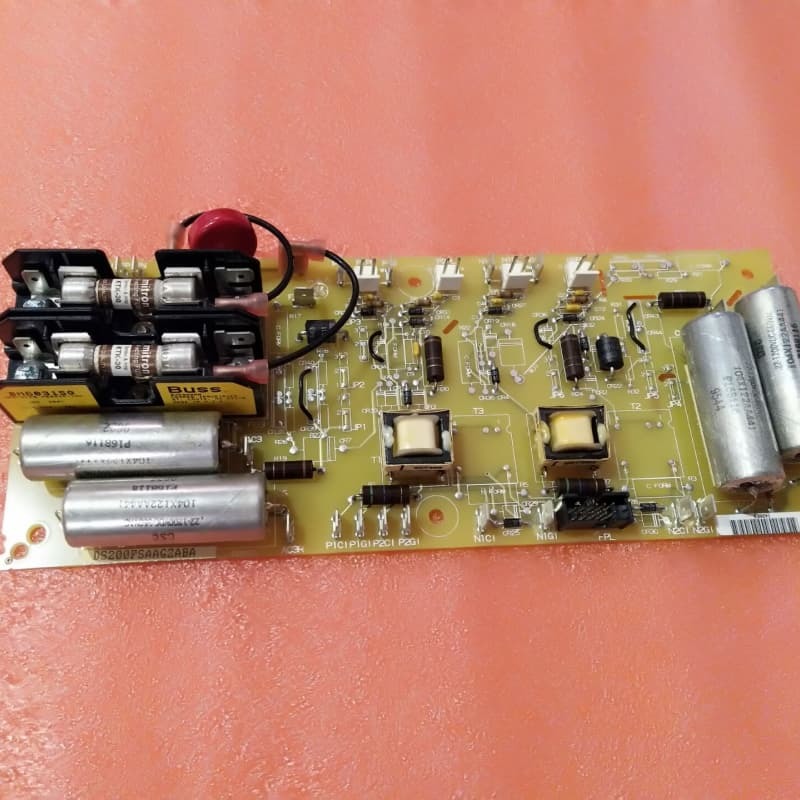

Physically, it features configurable and diagnostic hardware: 6 Berg-type jumpers, two 30 A/60 V fast-acting fuses, one 10-pin connector, four 2-pin connectors, and multiple test points. The connectors support links to multiple cables, requiring careful disconnection/reconnection during replacement. While online original instructional materials for the Mark V series are limited, key hardware details can be inferred from GE’s functional product numbering system.

Key Features:
Mark V & Speedtronic Legacy Compatibility: Tailored for Mark V turbine control systems, integrating GE’s longstanding Speedtronic technology to ensure reliable field supply gate amplification for wind/steam/gas turbines.

Configurable Hardware: 6 factory-set jumpers adjustable for NRP mode and removable fuses allow customization to match specific turbine system requirements, simplifying adaptation and maintenance.

Flexible Connectivity: One 10-pin and four 2-pin connectors enable secure linking to multiple cables, supporting seamless integration into Mark V’s turbine control architecture.

Diagnostic Access: Multiple test points facilitate troubleshooting of gate amplification circuits, aiding trained personnel in identifying issues and maintaining system uptime.

Industrial-Grade Protection: Fast-acting fuses safeguard the board and connected turbine components from current surges, aligning with harsh industrial operating standards.
