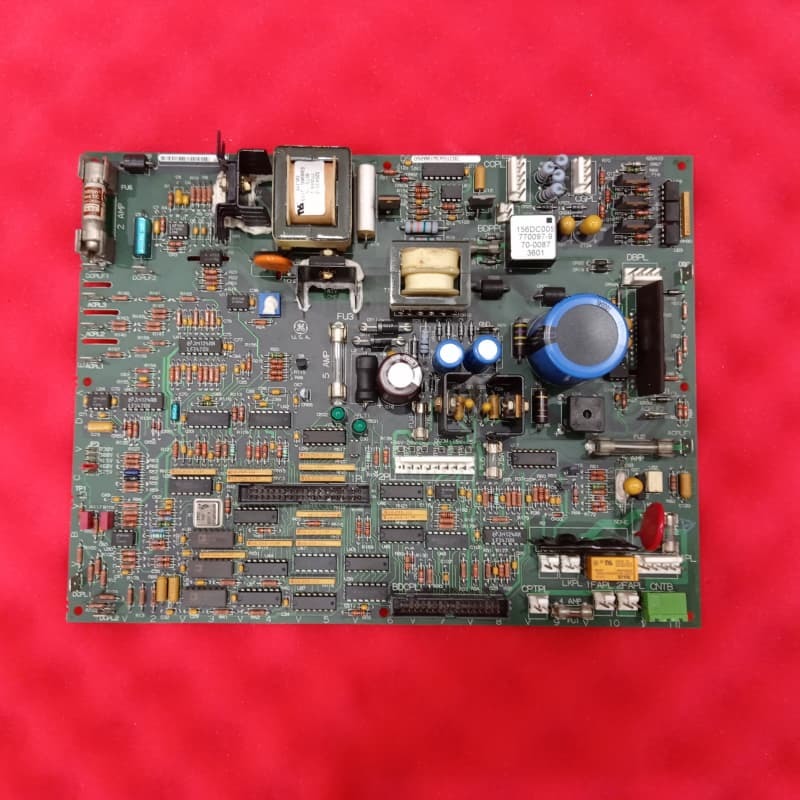

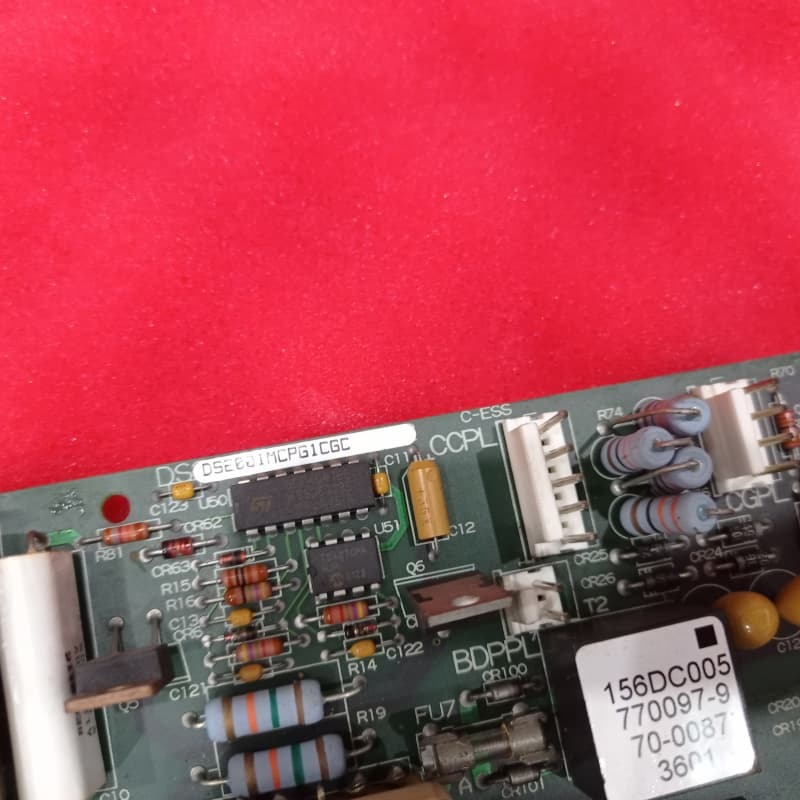

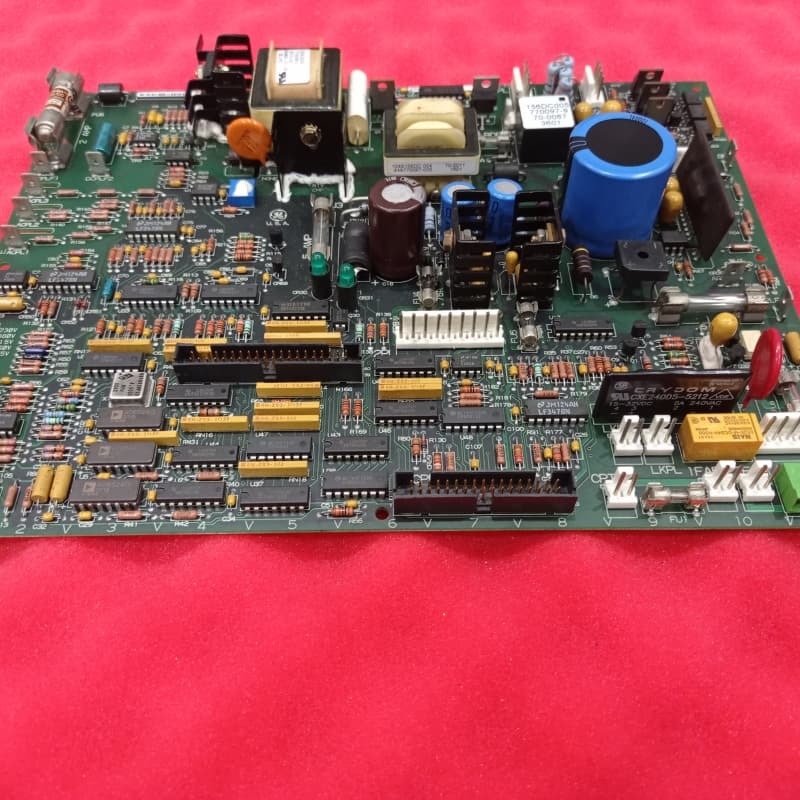

GE DS200IMCPG1CGC Power Supply Interface Board 330mm x 200mm

GE DS200IMCPG1CGC Power Supply Interface Board

Product Details:

The GE DS200IMCPG1CGC is an IGBT Power Supply Board designed for drive control systems, focusing on regulating and controlling power distribution within panels. Its core role is to ensure efficient, reliable operation of connected systems/subsystems by integrating advanced control mechanisms and protective features. It supports the Mark V panel’s multi-source power integration, with each input passing through a dedicated external 30 A 2-pole thermal magnetic circuit breaker for isolation and protection. Internally, each panel core has its own power supply board, all linked to a common 125 VDC distribution bus for consistent power delivery. A comprehensive diagnostics system monitors voltage sources, feeders, and even solenoid circuit fuses to maintain power health.

Key Features:
Multi-Source Power Flexibility: Enables the Mark V panel to use up to two 120/240 VAC and/or one 125 VDC sources, adapting to diverse operational environments and needs.

Robust Protection: Each power input has a dedicated 30 A 2-pole circuit breaker; the board also includes overcurrent, overvoltage, thermal management, and fault detection to safeguard the system.

Centralized Power Distribution: All core-specific power supply boards connect to a common 125 VDC bus, ensuring consistent, reliable power across the panel.

Comprehensive Diagnostics: Monitors voltage sources, feeders, and solenoid circuit fuses, providing real-time insights into power system health and enabling proactive troubleshooting.

Drive Control Integration: Tailored for drive control systems, supporting efficient power regulation to maintain stable operation of critical components like IGBTs.
