GE DS200TCQBG1B Extended Analog I/O Board with 2kg Weight 1year Warranty and 50-pin Connector for Turbine Control Systems
| Lugar de origem | NÓS |
|---|---|
| Marca | GE |
| Número do modelo | DS200TCQBG1BCB |
| Quantidade de ordem mínima | 1pc |
| Preço | $2000 |
| Detalhes da embalagem | Fábrica nova e original, embalagem de caixas individuais |
| Tempo de entrega | 5-7 dias |
| Termos de pagamento | T/T. |
| Habilidade da fonte | 999pcs |
Contacte-me para amostras grátis e vales.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Nome | GE DS200TCQBG1B DS200TCQBG1BCB ANALOGAÇÃO ANALÓGICA ESTANDENTE | ID do produto | DS200TCQBG1BCB |
|---|---|---|---|
| Série | Mark v | Função | Pacote de saída discreto |
| Profundidade líquida do produto/comprimento | 330mm | Altura líquida do produto | 200 mm |
| Largura líquida do produto | 100mm | Peso líquido do produto | 2kg |
| Garantia | 1 ano | ||
| Destacar | 2kg Weight Extended Analog I/O Board,1year Warranty Analog I/O Board,50-pin Connector I/O Board |
||
Descrição de produto

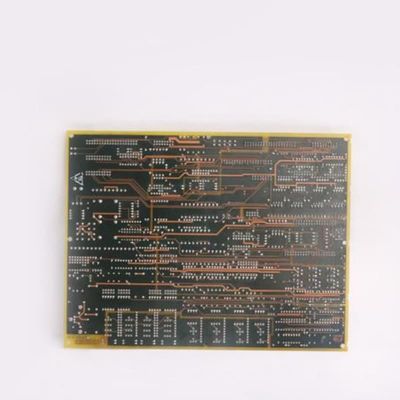

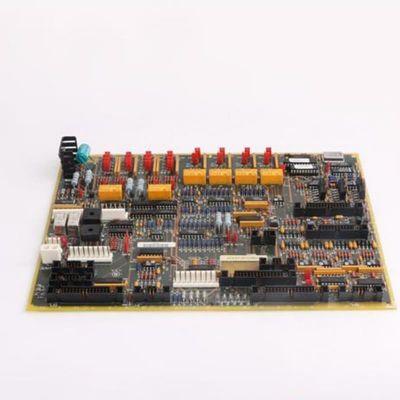

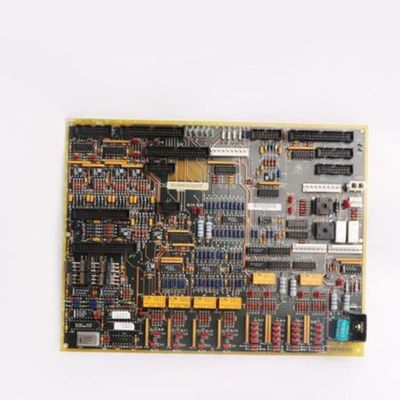

GE DS200TCQBG1B DS200TCQBG1BCB Extended Analog I/O board
The GE DS200TCQBG1BCB is an Extended Analog I/O Board designed for the Mark V Series, a Speedtronic technology-based control system used in wind, steam, and gas turbine management. As an upgraded variant of the parent DS200TCQBG1 board, it incorporates a sole B-rated functional revision, enhancing its compatibility and performance within turbine control systems. Classified as a critical printed circuit board (PCB) in GE’s official documentation, it expands the Mark V’s I/O capabilities, supporting seamless integration with turbine assemblies to ensure precise monitoring and control.
Key Features:
Core Hardware Components
The board is equipped with essential components: a programmable logic device, EPROM modules (storing firmware and processing programs), 1 visible OK LED for status checks, a 50-pin connector for signal routing, and 15 jumpers for configuration.
EPROM Handling Protocols
GE specifies strict procedures for EPROM transfer to prevent damage: use a flat-blade screwdriver to remove modules, avoid contact with other components, and wear a wrist strap to dissipate static (EPROMs are static-sensitive). Modules must be stored in static-protective bags, pre-grounded by touching the drive’s exterior to discharge static. During installation, align modules with sockets and press firmly to ensure a gap-free connection, preserving firmware integrity.
Informative Part Number
The DS200TCQBG1B part number encodes key details: DS200 series tag (indicating normal Mark V assembly and domestic manufacturing), “TCQB” functional abbreviation, standard PCB protective coating, Group One classification, and the B-rated functional revision.
Turbine-Specific Versatility
Designed for the Mark V Series, it supports diverse turbine types (wind, steam, gas) by extending analog I/O functions. Its hardware configuration, including jumpers and connectors, enables tailored integration with turbine control logic, ensuring reliable data processing and signal transmission critical for efficient turbine operation and safety.
